Dominirajte svojom mrežom uz vrhunske performanse. Za one koji zahtijevaju apsolutno najbolje, danas i sutra, ASUS RT-BE86U pokreće WiFi 7 sljedeće razine, pružajući munjevito brze dual-band brzine do 6800 Mbps za vaš povezani život. RT-BE86U može se pohvaliti fantastičnim kombiniranim mrežnim kapacitetom od 20G, otključavajući vrhunsko 10G umrežavanje s 10 Gbps WAN/LAN priključkom i do četiri 2,5 Gbps LAN priključka. U međuvremenu. novi ASUSWRT 5.0 osigurava bezbrižno mrežno iskustvo od kraja do kraja i 24/7.
RT-BE86U dolazi s 10G priključkom i četiri 2,5G priključka koji se kombiniraju za do 20G munjevitog WAN i LAN kapaciteta. Napredne mrežne konfiguracije su jednostavne uz Multi-WAN automatsko otkrivanje, praktičnu sigurnosnu kopiju mobilnog povezivanja preko USB-a i snažne VLAN kontrole.
| Model | RT-BE86U |
| Network Standard | IEEE 802.11a |
| IEEE 802.11b |
| IEEE 802.11g |
| WiFi 4 (802.11n) |
| WiFi 5 (802.11ac) |
| WiFi 6 (802.11ax) |
| WiFi 7 (802.11be) |
| IPv4 |
| IPv6 |
| Product Segment | BE6800 ultimate BE performance : 1032+5764 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps |
| WiFi 7 (802.11be) (5GHz): up to 5764 Mbps |
| Antenna | External antenna x 3； Internal antenna x 1 |
| Transmit / Receive | 2.4GHz 3x3 |
| 5GHz 4x4 |
| Processor | 2.6GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal |
| 4096-QAM high data rate |
| 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz |
| 5 GHz |
| Operating Mode | Wireless Router Mode |
| AiMesh Node Mode |
| Access Point Mode |
| Media Bridge Mode |
| Repeater Mode |

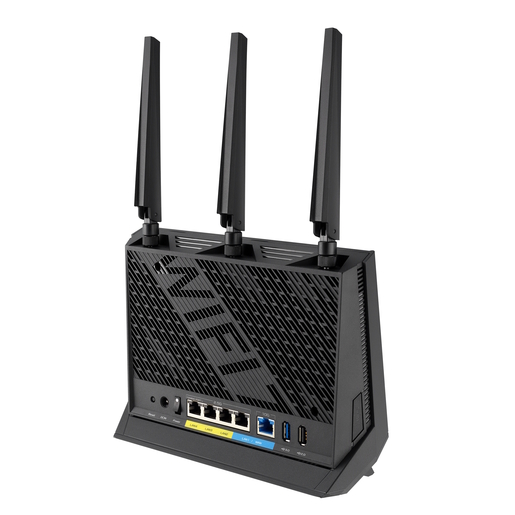

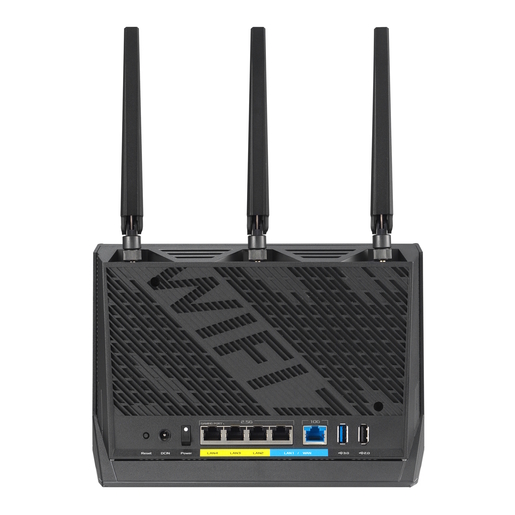

| I/O Ports | 1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1 |
| Buttons | WPS Button, Reset Button, Power Switch, LED on/off Button |
| LED Indicator | WAN x1 |
| 10G Port x1 |
| LAN x4 |
| USB x1 |
| 2.4GHz x1 |
| 5GHz x1 |
| Power x1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) |
| DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current |
| Package Content | RT-BE86U WiFi router |
| RJ-45 cable |
| Power adapter |
| Quick Start Guide |
| Warranty card |
| Product Weight (g) | 854 g |
| Product Dimensions | 235*90*316 mm |
| AiMesh | AiMesh |
| • Primary AiMesh Router |
| • AiMesh Node |
| Game | Mobile Game Mode |
| Gear Accelerator |
| OpenNAT (Game Profile) |
| Gaming Port |
| Parental Control | "Allow you to block access to unwanted websites and apps." |
| Web & Apps Filters |
| Time Scheduling |
| Safe Browsing |
| Customized Internet Schedule |
| • Maximum Parental Control Profile : 64 |
| • Maximum Parental Control Content Cilter Rule : 64 |
| Guest Network | "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." |
| Support Guest Network Pro |
| • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 |
| Guest Network Connection Time Limit |
| Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal |
| Security | AiProtection |
| VPN |
| WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE |
| WPS |
| Let's Encrypt |
| DNS-over-TLS |
| SSH |
| Security Scan |
| Firewall |
| • Maximum Firewall Keyword Filter : 64 |
| • Maximum Firewall Network Service Filter : 32 |
| • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection Pro |
| • Router Security Assessment |
| • Malicious Site Blocking |
| • Two-Way IPS |
| • Infected Device Prevention and Blocking |
| VPN | Instant Guard |
| VPN Client L2TP |
| VPN Client Open VPN |
| VPN Client PPTP |
| VPN Client WireGuard |
| VPN Server IPSec |
| VPN Server Open VPN |
| VPN Server PPTP |
| VPN Server WireGuard |
| VPN Fusion |
| Support Surfshark |
| Traffic Control | Adaptive QoS |
| • Bandwidth Monitor |
| • Bandwidth Limiter |
| -- Maximum Bandwidth Limiter Rule : 32 |
| Traditional QoS |
| Traffic Monitor |
| • Real-time Traffic Monitor |
| • Wired Traffic Monitor |
| • Wireless Traffic Monitor |
| Traffic Analyzer |
| • Traffic Analysis Period : Daily, Weekly, Monthly |
| • Website History |
| WAN | Internet Connection Type : |
| • PPPoE |
| • PPTP |
| • L2TP |
| • Automatic IP |
| • Static IP |
| • IPSec |
| Dual WAN |
| WAN Aggregation |
| 3G / 4G LTE dongle |
| Port forwarding |
| LAN | • Maximum Port Forwarding Rule : 64 |
| Port triggering |
| • Maximum Port Triggering Rule : 32 |
| DMZ |
| DDNS |
| NAT Passthrough : |
| • PPTP Pass-Through |
| • L2TP Pass-Through |
| • IPSec Pass-Through |
| • RTSP Pass-Through |
| • H.323 Pass-Through |
| • SIP Pass-Through |
| • PPPoE Relay |
| LAN | DHCP Server |
| IGMP Snooping |
| IPTV |
| LAN Link Aggregation |
| Manually Assign IP Address |
| • Maximum Manually Assign IP Address Rule : 128 |
| Wake on LAN (WOL) |
| Wireless | MU-MIMO |
| UTF-8 SSID |
| WiFi MAC Address Filter |
| • Maximum MAC Filters : 64 |
| Wireless Scheduler |
| Airtime Fairness |
| RADIUS Client |
| Universal Beamforming |
| Explicit Beamforming |
| USB application | File System : |
| • HFS+ |
| • NTFS |
| • vFAT |
| • ext2 |
| • ext3 |
| • ext4 |
| Safely Remove Disk |
| AiCloud |
| Download Master |
| AiDisk |
| Media Server |
| Time Machine |
| Samba Server |
| FTP Server |
| Shared Folder Privileges |
| User Interface | WEB: ASUSWRT |
| APP: ASUS Router APP |
| Administration | Configuration Backup and Restore |
| Diagnosis tools |
| Feedback System |
| System Log |
| New Device Connect Notification |
| Login Captcha |
| Connection Diagnosis |
| Auto Firmware Update |
